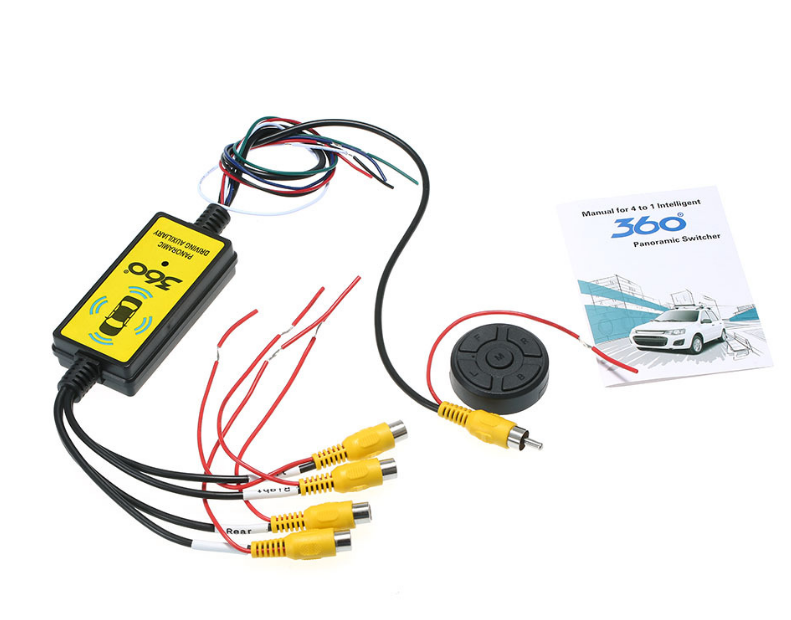

360 view 4 AV In 1AV Out Box For Car Screen
Type : 360 View Camera Box Car fitment : Universal
4 to 1 Intelligent 360 Panoramic Switcher is supposed to add more video inputs for cameras when it's connected with video interface for different car models. It's sort of DIY solution for customers with easy installation. The switcher can work with video interface, aftermarket Car DVD or Monitor.
1). Four video inputs: Left view, Right view, Front view and Reverse view. There is + 12V power supply for each video input.
2). Four video outputs share with one video channel with the same power trigger line.
3). When each camera gets power supply from the corresponding car lamp, the display could show the correct video channel by turn on left and right indicator or back up. When you turn “R” to other gear, the display will show front view for 7 seconds (It's optional). After 7 seconds, it gets back video output closed state.
Cable color refers to: 12V power + (Red cable),
GND-(Black cable), Left indicator (Blue cable),
Right indicator (Green cable) and Back-up lamp (White cable)
4). The product itself has designed the product power and the camera supply protection circuit, carries on the protection to the camera and the vehicle circuit.
5). It adopts wireless remote control.
6). Wide voltage VCC 8--16V; If it's applied in the truck, you can use a 4V to 12V transformer.

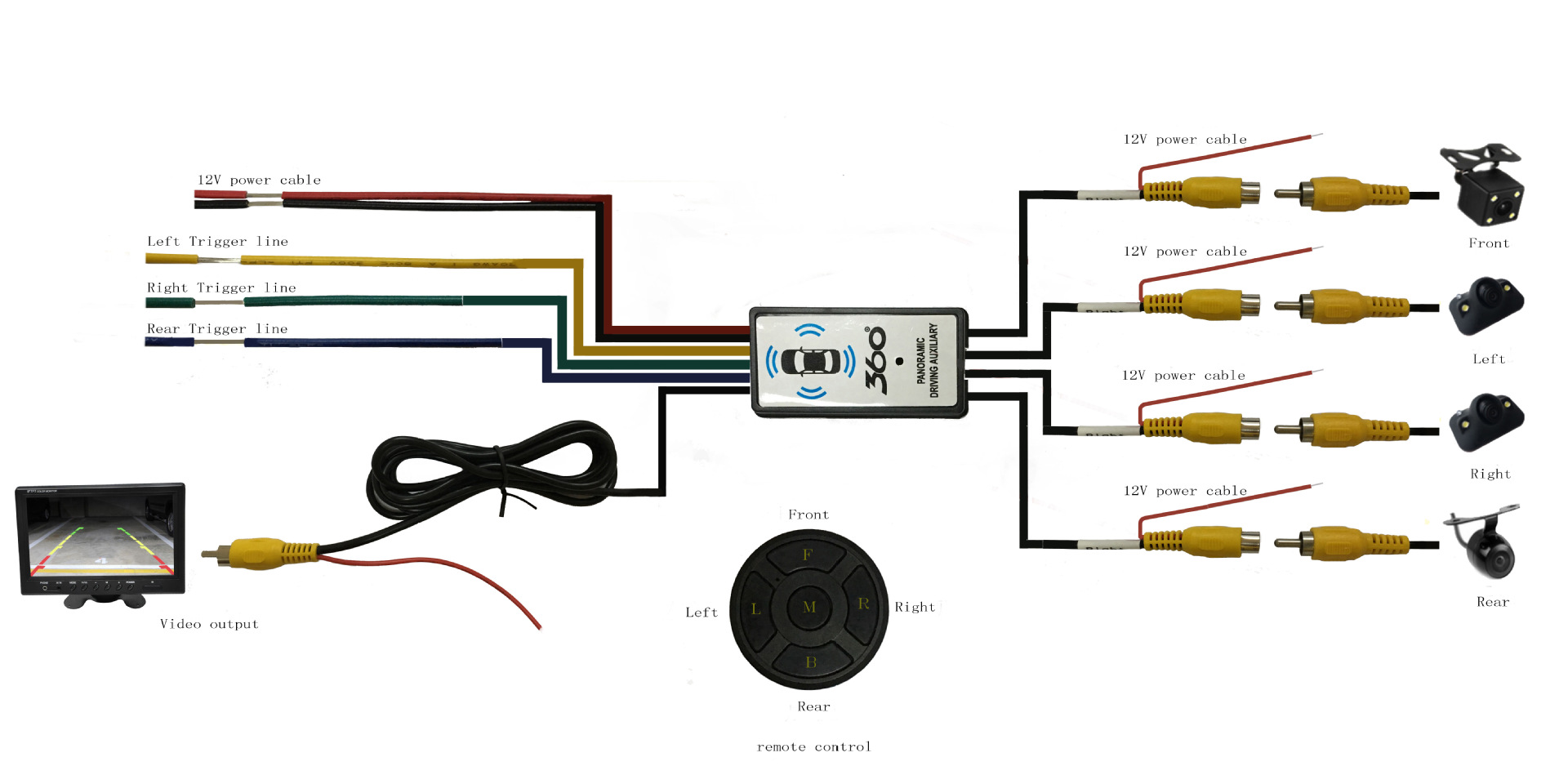

Installation Diagram
